Customizing error code for Cloudflare mTLS cert check

Summary

The Bitwarden mobile app wipes its local cache when receiving an HTTP 403 error. By default, a WAF rule in a Cloudflare free account can only return a 403. This guide shows how to use Cloudflare Workers to validate mTLS certificates and return an HTTP 404 instead.

Background

For accessing internal services remotely, I have been a big fan of Cloudflare Tunnels. This system provides an easy mechanism to provide access without opening up firewall ports, and the ability to take advantage of Cloudflare security controls like their Web Application Firewall (WAF) and Zero Trust access control.

Previous authorization model

Up until recently, I have secured my internal applications with a simple OAuth identity validation through Zero Trust. Depending on the identity provider used, this can provide a significant amount of protection, but it can cause issues with non-web based applications like mobile apps.

One simple alternative I’ve used is Service Tokens, which can be provided via custom HTTP headers – if the app I’m trying to use supports that type of customization. However, this is quite rare, so I started looking for a more universal approach.

mTLS authorization

Historically, during client/server communication, the focus has been on ensuring the server endpoint is trustworthy, and where SSL/TLS is a standard requirement. There are many use cases where the server may need to assess the trustworthiness of the device communicating with it. For a very sensitive system like a password manager, validating the device in addition to the user credentials provides an extra layer of security.

Mutual TLS (mTLS) is a process that provides the missing validation, by having the client provide its certificate to the server (after the client has validated the server’s certificate).

Cloudflare mTLS support on free plans

I am currently using Cloudflare’s free plan, as the pricing for their Pro and Business plans is quite lofty for a single household use case.

With the free plan, you can create certificates via the Cloudflare dashboard, which ends up creating a certificate signed by a Cloudflare-managed, account-level root CA. Then, the client certificate validation can be referenced in a WAF rule.

However, there are some important limitations here:

• You cannot bring your own CA, which means the certificates cannot be used in Zero Trust access controls.
• You cannot get the cert for your individual Cloudflare-managed CA, which means you cannot bundle it into the client certificate, which is a requirement to use it some situations (like Chrome on Android).

Another limitation, not strictly related to mTLS certs, is that the Cloudflare WAF rules will always return HTTP 403 when they block traffic. Customizing the response, including the response code, is limited to Pro plans (and above).

Need for customizing the response code

I have a password manager application (Bitwarden) that caches passwords locally, which is a helpful feature when I don’t have an Internet connection. However, this app will always try to sync passwords if it can. As a security mechanism, if it is able to reach the server (Vaultwarden, in my case), and the server returns a 401 or 403 response code, the app will immediately clear the local cache.

I encountered this scenario when testing my mTLS configuration. I immediately thought of future situations where this could cause significant distress – let’s say I’m outside my network and need access to a password. Something has happened on my device: maybe the mTLS cert was accidentally uninstalled, or maybe it expired and I haven’t realized it yet. I try to access the password, everything vanishes, and I’m stuck.

I wanted to prevent this from being a possibility, which is why I wanted to alter the response code from 403 to 404. As mentioned in the previous section, this isn’t possible on the free plan.

Enter Cloudflare Workers

However, there is another option within reach of the free plan, which is Cloudflare Workers. Workers allow you to deploy some custom code that can be mapped to a specific URL path. The free plan currently allows up to 100,000 Workers requests per day, which is plenty for household use.

To get this setup, I did the following:

Create and configure the mTLS certificate

Create an mTLS certificate and enable it for the targeted domain names.

Remove any WAF rules

I first made sure any WAF rules I had did not apply to the hostname in question. In the request lifecycle, these will be executed early on.

Add a Zero Trust bypass rule (optional)

Zero Trust access rules also run prior to Workers, so you need to make sure this won’t block access to your application.

If you only have Zero Trust applications set up for specific subdomains, you may not need to do anything here. I happen to have a wildcard application setup, so that anything in my domain would route to the Zero Trust handling by default. This means I needed to specify an exception just for the subdomain that I wanted to protect with an mTLS cert.

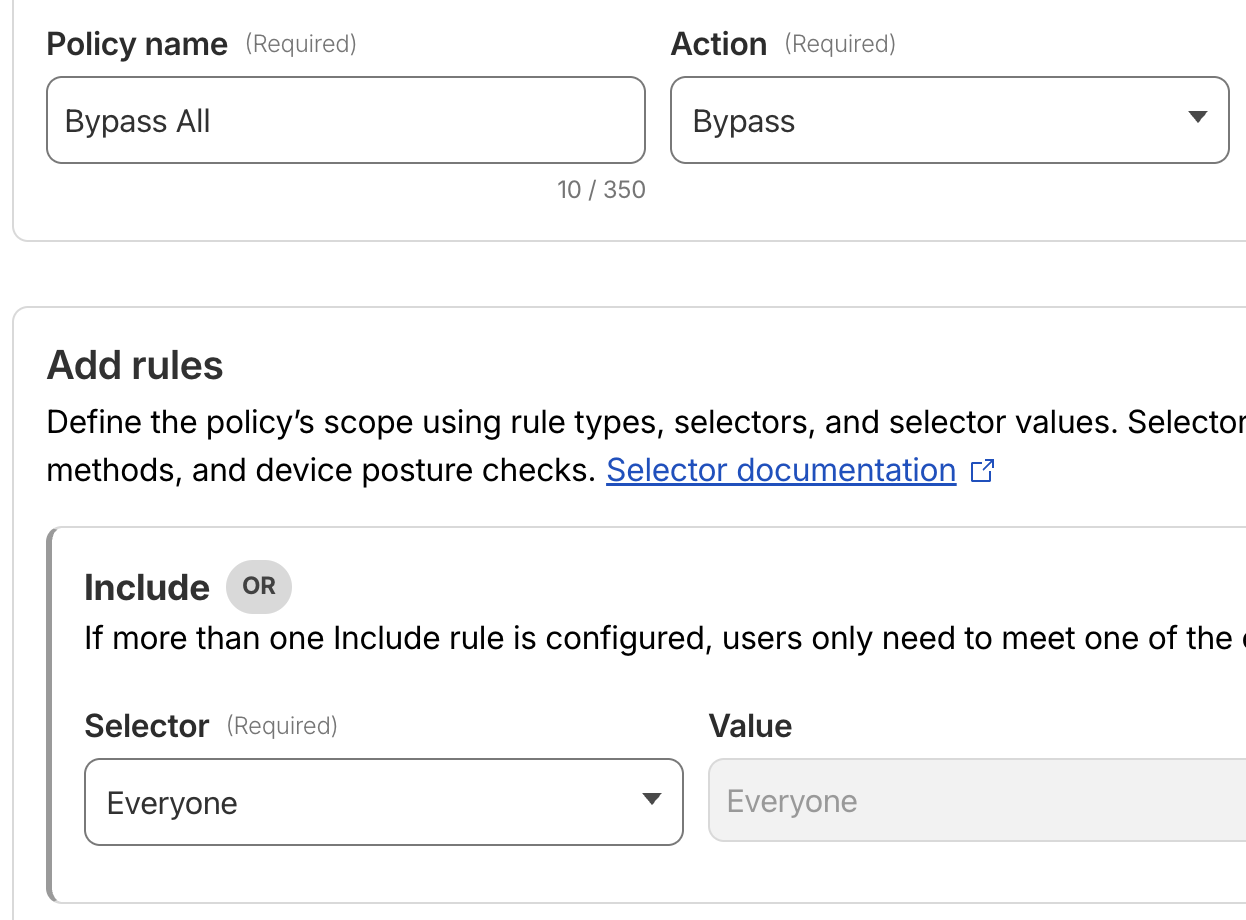

To do this, I created a “bypass all rule”:

Create the worker

Create a new worker, using the provided “Hello World” template. Replace the code with the following:

export default {
  async fetch(request, env, ctx) {
    // Get the certificate status from the Cloudflare edge
    const clientTrust = request.cf?.tlsClientAuth;

    // Check that the mTLS has been presented and verified by Cloudflare.
    if (!clientTrust
        || clientTrust.certPresented !== "1"
        || clientTrust.certVerified !== "SUCCESS") {
      return new Response("Not Found", {
        status: 404,
        headers: { "Content-Type": "text/plain" }
      });
    }

    // If valid, forward the fetch to the backend server.
    return fetch(request);
  },
};

Optional: If you would normally use a WAF rule to block other types of traffic, you likely can incorporate that logic into the Worker as well. For example, you could add a regional restriction like this:

if (request.cf?.country !== "US") {
  return new Response("Not Found", {
    status: 404,
    headers: { "Content-Type": "text/plain" }
  });
}

Set up route and test the new worker

After deploying the worker, you can then configure the appropriate route by following the Cloudflare documentation.

Then, try accessing the application you have protected, on devices with and without the mTLS certificate installed.

Future wishes

Ideally, I would really like to be able to target mTLS certificates as part of the Zero Trust access policies. This would allow different combinations to be created, like supporting either mTLS auth or an OAuth identity provider. Depending on the application being protected, this type of configuration may provide adequate security, while providing greater flexibility – allowing web browser access with just OAuth, but falling back to mTLS auth for devices where it is the best option.

There is rich support for mTLS auth in Zero Trust, but this support is limited to Business accounts only! At hundreds of dollars per month, that’s a very high price to pay given that I don’t need most of what that plan provides.

If anyone from Cloudflare is listening, it’d be great to expand the availability of this feature – potentially they could offer individual feature plans, like what is currently done for Workers. I’d happily pay a reasonable amount just to get support to bring my own root CA and use it as part of my Zero Trust access policies.

Final thoughts

Securing a server shouldn’t come at the cost of usability. By moving logic from the limited WAF rules in a Cloudflare free account into a Cloudflare Worker, I believe I’ve managed to keep the high-security of using mTLS while smoothing out the quirks of the password manager application I’m using. It’s an easy-to-configure change that avoids a potential lockout.

Are you running a similar setup? Have suggestions on other ways to leverage Cloudflare’s copious free functionality? Leave a comment below or send me an email.
